Wellness / Longevity / RedWave
Full-body red lightRedWave
A full-body red and near-infrared light bed for spas, hotels, gyms and longevity clinics. Guests lie down for 10 to 20 minutes and leave relaxed, recharged and ready to go. Self-service, made in Germany.
Supplied, installed and serviced in the UAE by Juventix- High-performance LEDs
- 4,416
- Red and near-infrared light
- 630–850 nm
- Per session
- 10–20 min
- Designed and built
- Germany
How it works
Two kinds of light, two depths
Red light at 630 and 660 nanometres acts on the skin. Near-infrared light at 850 nanometres travels deeper, into fascia and muscle. RedWave combines both in one even, full-body session.
Research into red and near-infrared light points to support for the body's own energy production (ATP), circulation and collagen. That is why the same treatment fits a recovery routine, a wellness menu and a well-ageing programme.
- Epidermis
- Dermis
- Subcutis
- Fascia
- Muscle
What guests feel
Performance
Supports the body's energy and general vitality, before or after training.
Recovery
Helps muscles recover after exercise and supports active recovery days.
Well-ageing
Supports collagen and a fresher-looking complexion across the whole body.
Quality of life
Deeply relaxing. Guests report better sleep and more energy for the day.
Film
RedWave in action
Where it fits
One treatment, four kinds of property
RedWave runs as a self-service treatment, so it adds a premium experience without adding therapists to the schedule.
Spas and hotels
A signature recovery ritual next to the sauna and treatment rooms. Easy to sell as an add-on or as part of a package.
Residences and clubhouses
A recovery suite for wellness-led developments, planned in at design stage.
Gyms and performance centres
Pre-workout activation and post-workout recovery in one booth.
Longevity and well-ageing clinics
A light layer that complements diagnostics, IV and nutrition programmes.
For operators
Built to earn its floor space
Short sessions, no staff needed during use, and a design that guests want to photograph.
Self-service, all dayGuests start their own session on the Easy Control panel. No therapist time required.
A new line of revenue10 to 20 minute sessions mean several guests an hour, sold alone or in packages and memberships.
Fits a standard treatment roomThe RedWave Pure bed needs a room of about 2.4 × 1.5 m and a normal 230 V supply.
Award-winning designHonoured at the German Design Award. Available in matt black or Scandinavian white.
Installed and serviced locallyJuventix plans the room, installs the system and provides service and support in the UAE.
The range
Beds and booths
Lying beds for relaxation and recovery, and upright booths that add Vibra Shape vibration training for an energising workout.

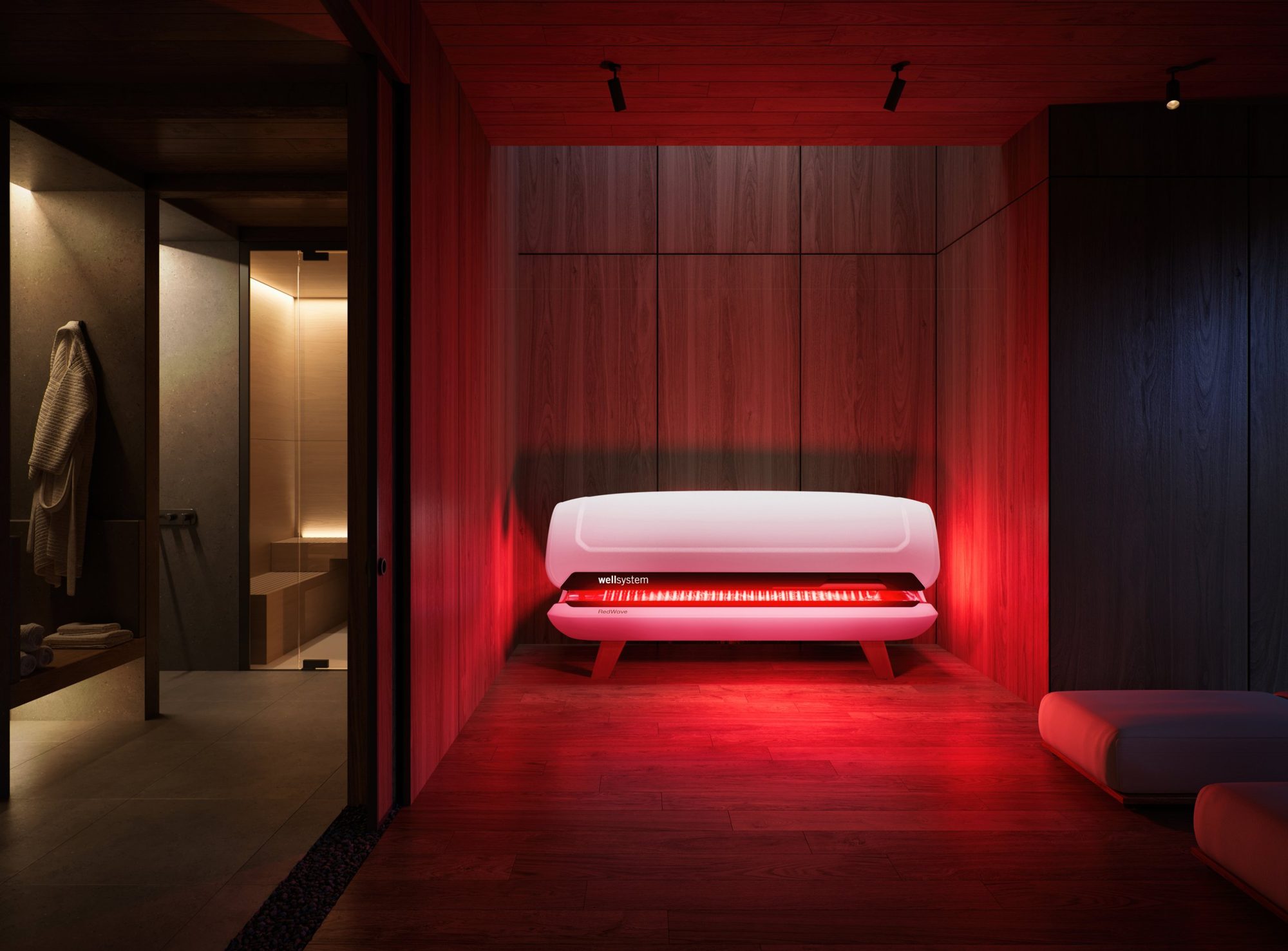

RedWave Pure
4,416 LEDs in red and near-infrared for an even full-body session. Silent cooling and an ergonomic lying surface.

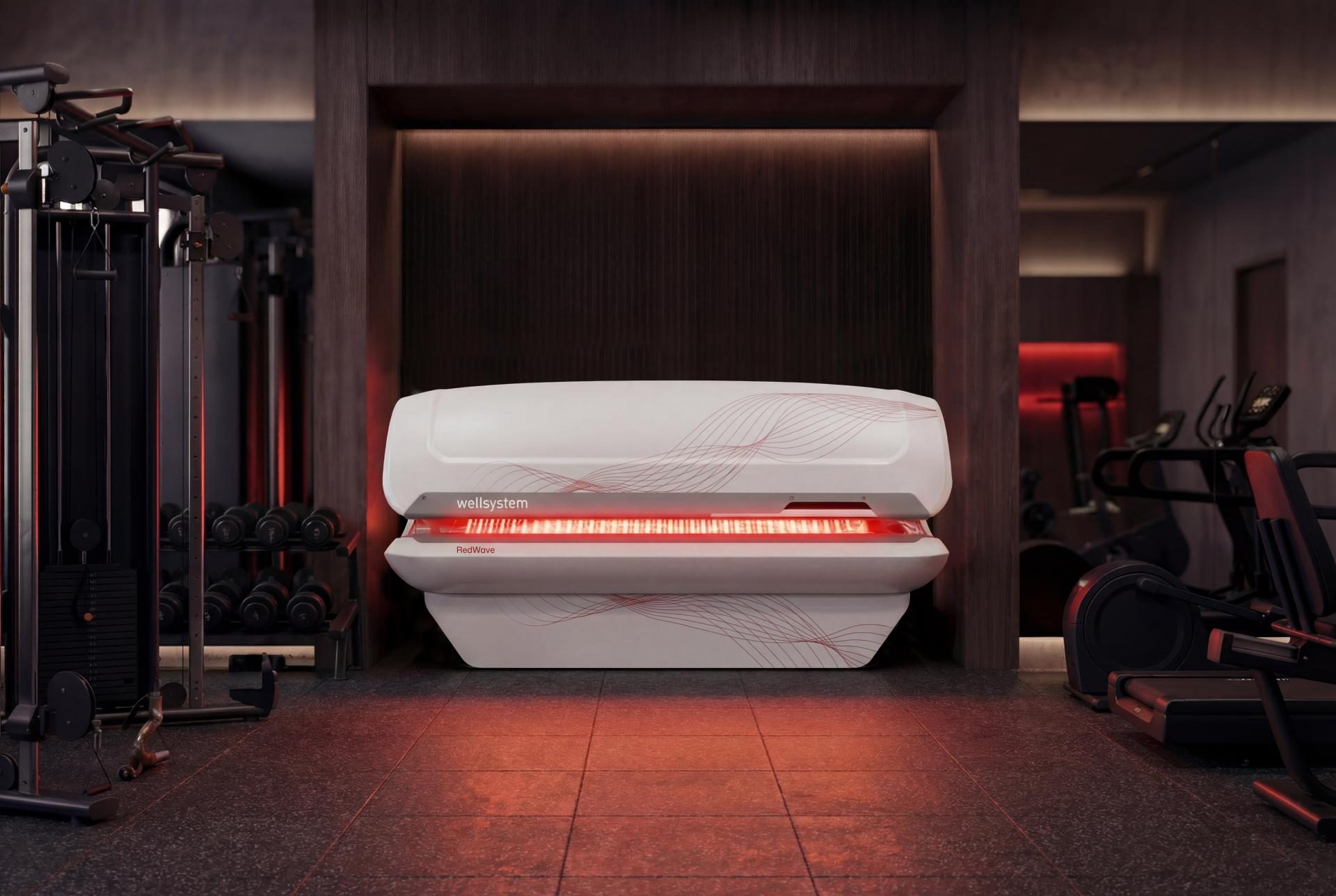

RedWave Plus
The same light technology with low-maintenance materials and an illuminated interior, made for high-frequency use.

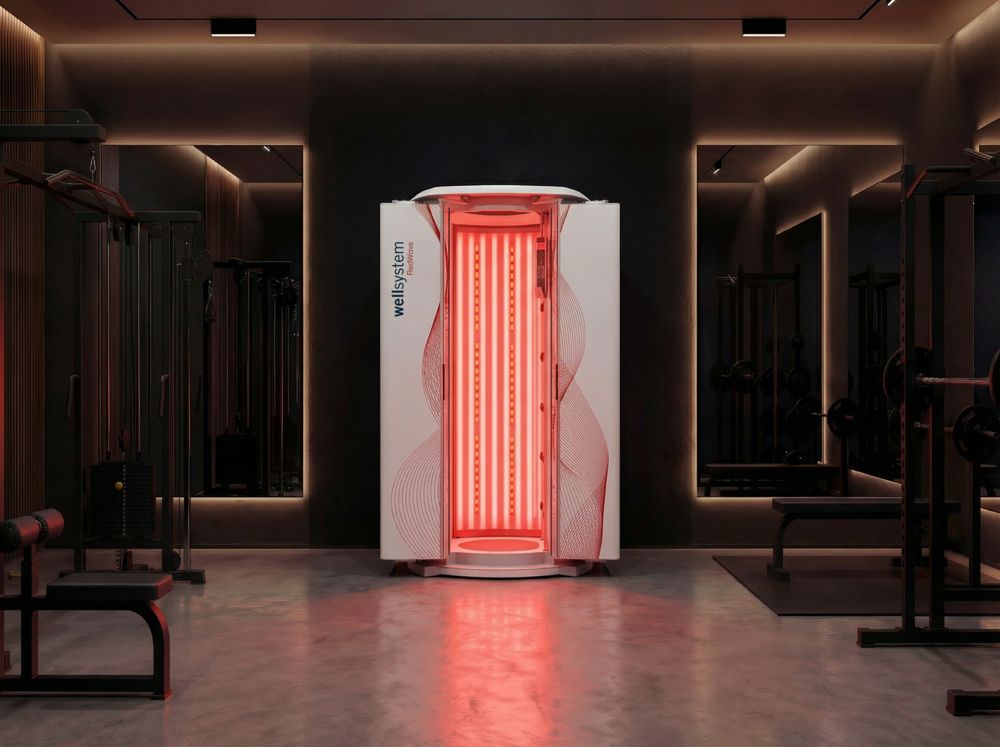

RedWave Pure and Plus Booth
Stand-up red light with side-alternating Vibra Shape training: 20,000 steps in 10 minutes, gentle on the joints.
| RedWave Pure | RedWave Plus | RedWave Booths | |
|---|---|---|---|
| Light | 4,416 LEDs Red 630 + 660 nm, near-infrared 850 nm | 4,416 LEDs Red 630 + 660 nm, near-infrared 850 nm | 32 red light lamps (peak 620 nm) Plus Booth adds 300 red (660 nm) and 300 near-infrared (850 nm) LEDs |
| Session | 10–20 min | 10–20 min | 10–12 min |
| Comfort | Silent cooling, Easy Control | 3D sound with Bluetooth, Surround Cooling Plus, easy entry | Open-air design, Smart Control with voice guide, Vibra Shape training |
| Size closed (L × W × H) | 216 × 93 × 97 cm | 216 × 93 × 109 cm | 110 × 109 × 227 cm |
| Room needed | 240 × 150 cm | 240 × 150 cm | 210 × 240 cm, 232 cm high |
| Weight | approx. 190 kg | approx. 190 kg | approx. 415 kg |
| Max. load | 150 kg | 150 kg | 150 kg |
| Power | max. 1,400 W, 230 V | max. 1,400 W, 230 V | approx. 6,000 W, 3 × 16 A |
Dimensions converted from the manufacturer's data and rounded. Juventix confirms exact specifications for your project.
“Thanks to the full-body red light application, our players benefit from a systemic effect that has a positive impact on the entire body.”
“In addition to nutrition, exercise and mental wellbeing, we now recognise light as a key factor in supporting long-term human health.”
The maker
German light technology since 1927
wellsystem is part of the JK Group, a German company that has pioneered light-based technology since 1927. Every system is developed in its own research centre with medical and scientific experts, and built in Germany.
- Founded
- 1927
- Countries
- 50+
- German production sites
- 4
Questions
Planning a RedWave room
How long is a session?
10 to 20 minutes on the RedWave beds, 10 to 12 minutes in the booths. Most operators sell single sessions, packages and memberships.
Does someone need to supervise each session?
No. Guests start the session themselves on the control panel. Your team only needs to welcome the guest and clean the surface between sessions.
How much space and power do I need?
A RedWave Pure bed fits a room of about 2.4 × 1.5 m and runs on a standard 230 V supply. The booths need a larger room and a three-phase connection. We check your floor plan before you order.
Is it UV light, like a tanning bed?
No. RedWave uses visible red and near-infrared light only. It does not tan the skin.
Do guests need eye protection?
No special protection is needed. Guests are advised to keep their eyes closed for comfort, and light-sensitive guests can use goggles.
Is it suitable for everyone?
Red light is generally well tolerated. It is not recommended during pregnancy, for people with epilepsy or strong light sensitivity, or with photosensitising medication. Guests with a medical condition should check with their doctor first. RedWave is a wellness device, not a medical device.
Who installs and services it in the UAE?
Juventix handles room planning, delivery, installation, staff training and after-sales service across the UAE and the GCC.
Bring red light recovery to your property
Tell us about your space and your guests. We will recommend the right model, plan the room and send you a quote.
